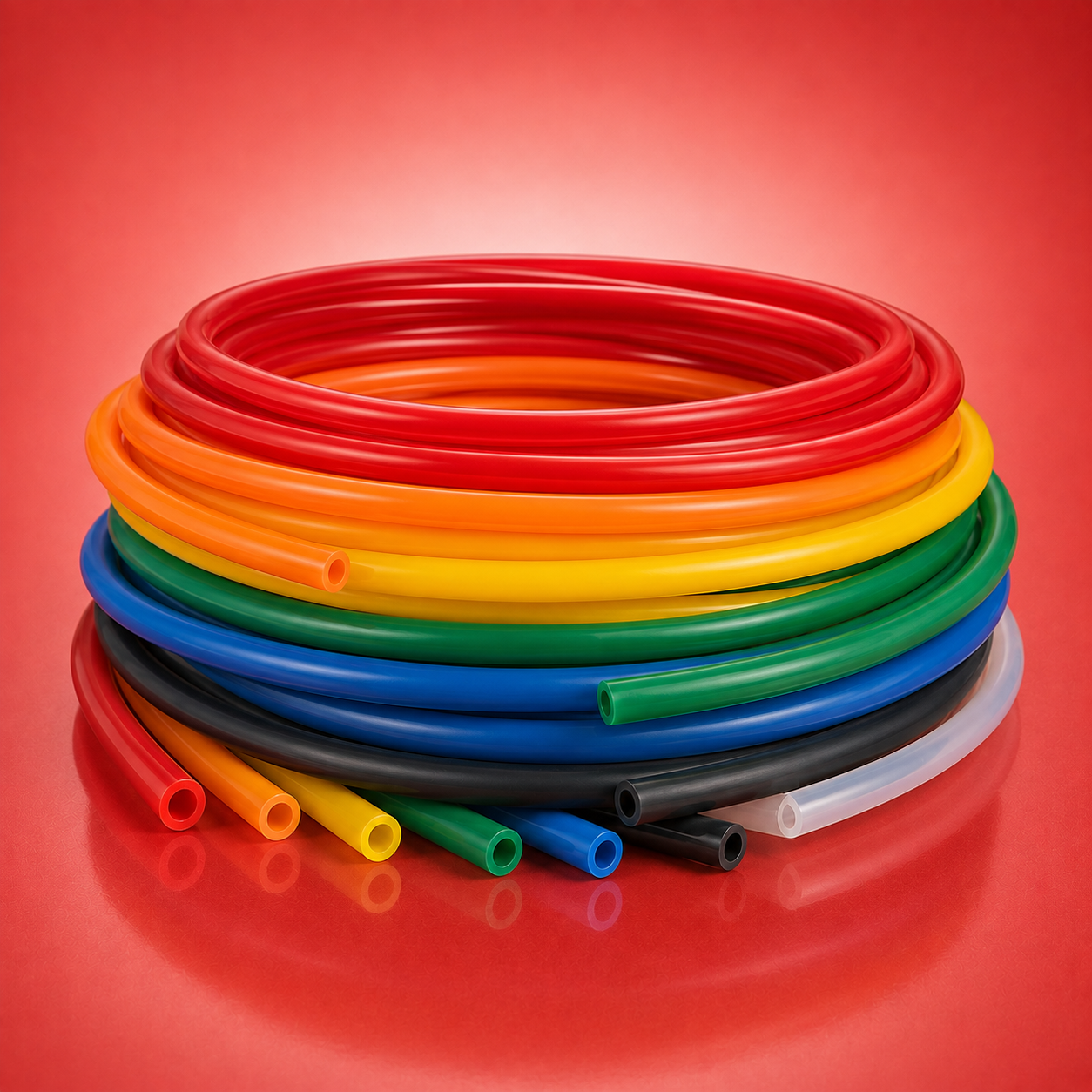

JMT Rubber manufactures premium-quality Colour Coded Silicone Tubing designed to simplify fluid transfer operations through quick visual identification. Available in a variety of colors, these tubes help improve process efficiency, reduce cross-contamination risks, and enhance operational safety across pharmaceutical, biotechnology, food processing, laboratory, and industrial applications.
Combining the flexibility, purity, and durability of high-quality silicone with customized color coding options, our tubing is ideal for applications where multiple fluids, process lines, or production stages need to be clearly distinguished.
Colour Coded Silicone Tubing is manufactured using high-quality silicone compounds and customized pigmentation to provide easy visual identification of process lines. Different colors can be assigned to specific products, fluids, departments, production stages, or transfer systems, helping operators reduce errors and improve process control.
These tubes offer the same flexibility and performance as standard silicone tubing while adding an effective identification system for complex processing environments.
Different colors help distinguish process lines, reducing operational errors.
Maintains flexibility and elasticity for easy installation and handling.
Ensures efficient fluid transfer with minimal product retention.
Bright and consistent colors improve workplace organization and process management.
Designed to withstand demanding operating conditions.
Performs reliably across a wide temperature range.
Suitable for hygienic and sensitive processing environments.
Available in multiple standard and custom colors based on customer requirements.
JMT Rubber offers Colour Coded Silicone Tubing in various colors including:
Custom colour matching is available for OEM and specific customer applications.
Identification of process lines, ingredient transfer systems, and production stages.
Color-coded media transfer and laboratory systems.
Easy identification of product-specific transfer lines.
Segregation of production and cleaning lines.
Efficient management of multiple ingredient transfer systems.
Organized sample transfer and testing operations.
Process line identification and workflow management.
Property | Specification |
Material | Silicone Rubber |
Colour Options | Transparent, Red, Blue, Green, Yellow, Black, White & Custom Colours |
Surface Finish | Smooth Internal & External Surface |
Hardness | 50 ± 5 Shore A |
Operating Temperature | -60°C to +200°C |
Flexibility | Excellent |
Transparency | Available in Select Colours |
UV Resistance | Excellent |
Ozone Resistance | Excellent |
Standard Packaging | 10m, 15m & 25m Coils |
Inner Diameter (ID) mm | Outer Diameter (OD) mm | Wall Thickness mm |
1.0 | 3.0 | 1.0 |
2.0 | 4.0 | 1.0 |
3.0 | 5.0 | 1.0 |
4.0 | 6.0 | 1.0 |
5.0 | 8.0 | 1.5 |
6.0 | 9.0 | 1.5 |
8.0 | 11.0 | 1.5 |
10.0 | 13.0 | 1.5 |
12.0 | 16.0 | 2.0 |
15.0 | 19.0 | 2.0 |
19.0 | 25.0 | 3.0 |
25.0 | 31.0 | 3.0 |
Custom dimensions and wall thicknesses are available upon request.
Quick visual identification improves workflow efficiency.
Minimizes the risk of connecting incorrect process lines.
Supports organized and clearly defined production systems.
Makes inspection, troubleshooting, and maintenance easier.
Available in customer-specific colours and configurations.
JMT Rubber’s Colour Coded Silicone Tubing helps manufacturers improve process organization, reduce errors, and enhance operational efficiency while maintaining the performance and reliability expected from premium silicone tubing.
Colour coding helps identify different process lines, products, and production stages, reducing errors and improving operational efficiency.
Yes. JMT Rubber offers custom colour matching based on customer specifications.
Yes. Colour Coded Silicone Tubing is widely used in pharmaceutical manufacturing and processing facilities.
Yes. We manufacture tubing in custom diameters, wall thicknesses, and lengths.
Standard packaging lengths include 10m, 15m, and 25m coils, with custom packaging available upon request.
Reliable fluid transfer solutions for critical manufacturing environments.
High-purity tubing for sensitive biological processes.
Precision tubing solutions for healthcare and medical equipment.
Safe and hygienic transfer systems for food-grade applications.
Flexible tubing solutions for dairy processing environments.
Contamination-free transfer of cosmetic ingredients and formulations.
Trusted tubing solutions for analytical and research applications.
Products manufactured in a controlled environment to ensure consistent quality and cleanliness.
Extensive experience serving pharmaceutical, biotech, medical, and food industries.
Tailored solutions developed to meet specific customer requirements.
Stringent quality control throughout the manufacturing process.
Expert guidance for product selection and application requirements.
Timely delivery and dependable customer support.
Contact our technical team to discuss your application requirements and discover the ideal silicone bellows solution for your equipment and process systems.
