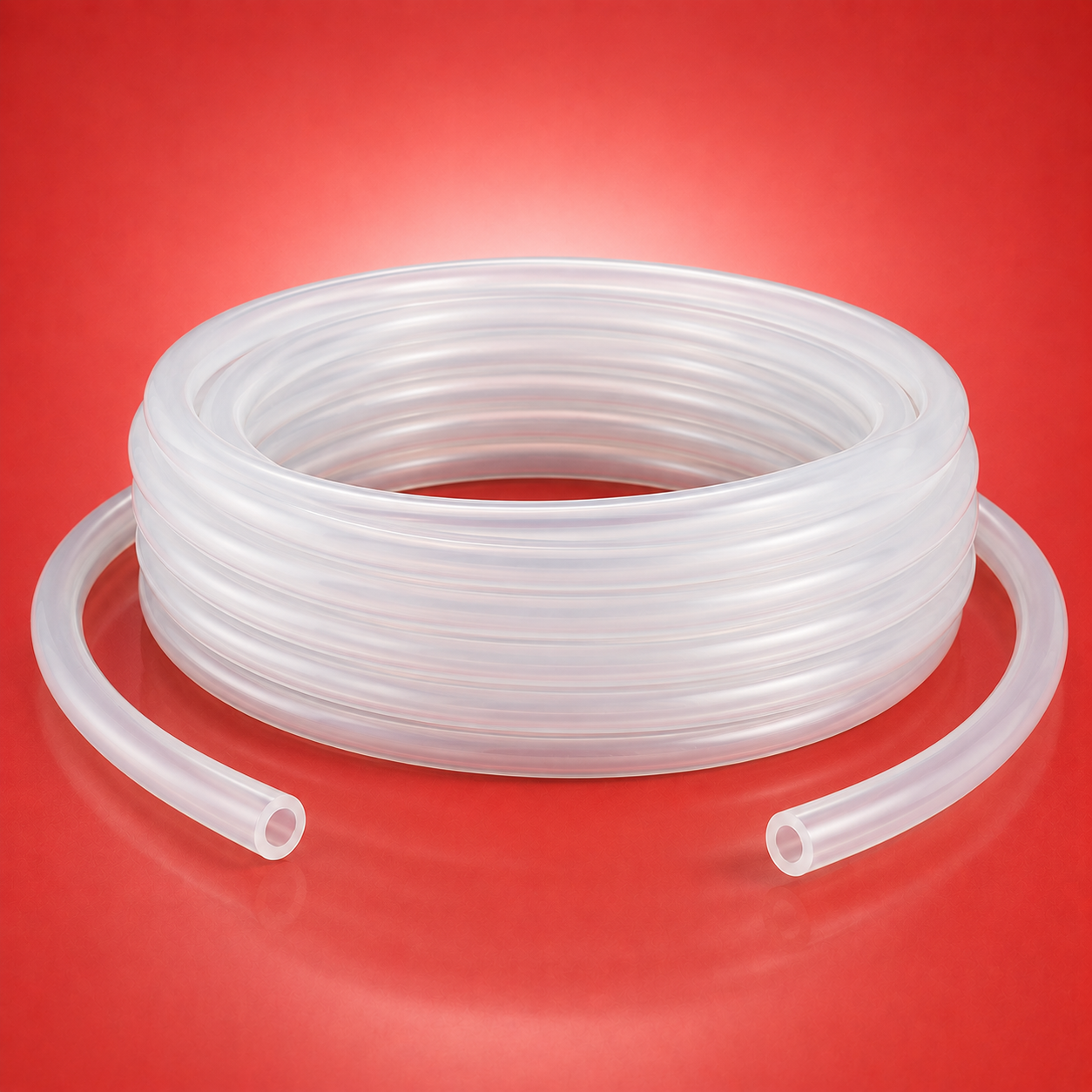

JMT Rubber manufactures premium-quality Platinum Cured Silicone Tubing engineered for applications where purity, flexibility, durability, and performance are critical. Designed for pharmaceutical, biotechnology, medical, food, beverage, and laboratory environments, our tubing provides reliable fluid transfer while maintaining the highest standards of cleanliness and product integrity.
Manufactured using advanced platinum-curing technology and produced in a controlled manufacturing environment, our silicone tubing offers exceptional transparency, flexibility, and resistance to temperature extremes, making it the preferred choice for critical process applications.
Platinum Cured Silicone Tubing is manufactured using a platinum-catalyzed curing process that produces a cleaner, purer, and more stable silicone material compared to conventional peroxide-cured silicone. The process results in lower extractables, improved clarity, superior mechanical properties, and excellent biocompatibility.
This makes platinum cured tubing ideal for sensitive fluid transfer applications where contamination control and product quality are essential.
Manufactured using platinum-curing technology to ensure low extractables and superior product purity.
Maintains outstanding flexibility and resilience, allowing easy installation and handling.
Clear tubing enables visual monitoring of fluid flow and process conditions.
Performs reliably across a wide operating temperature range.
Reduces product retention and promotes efficient fluid transfer.
Suitable for hygienic and contamination-sensitive applications.
Excellent resistance to environmental factors for extended service life.
Can withstand common sterilization processes including autoclaving and ETO sterilization.
Property | Specification |
Material | Platinum Cured Silicone |
Colour | Transparent / Translucent |
Surface Finish | Smooth Inner & Outer Surface |
Hardness | 50 ± 5 Shore A |
Operating Temperature | -60°C to +200°C |
Sterilization | Autoclave, ETO, Gamma Compatible |
Transparency | High |
Flexibility | Excellent |
Shelf Life | Up to 5 Years |
Standard Packaging | 10m, 15m & 25m Coils |
Inner Diameter (ID) mm | Outer Diameter (OD) mm | Wall Thickness mm |
1.0 | 3.0 | 1.0 |
2.0 | 4.0 | 1.0 |
3.0 | 5.0 | 1.0 |
4.0 | 6.0 | 1.0 |
5.0 | 8.0 | 1.5 |
6.0 | 9.0 | 1.5 |
8.0 | 11.0 | 1.5 |
10.0 | 13.0 | 1.5 |
12.0 | 16.0 | 2.0 |
15.0 | 19.0 | 2.0 |
19.0 | 25.0 | 3.0 |
25.0 | 31.0 | 3.0 |
Custom dimensions, wall thicknesses, and coil lengths are available on request.
JMT Rubber offers Platinum Cured Silicone Tubing in various configurations to suit diverse industrial requirements:
Whether you’re looking for standard tubing sizes or custom-engineered solutions, JMT Rubber provides premium Platinum Cured Silicone Tubing designed to meet the demanding requirements of pharmaceutical, biotechnology, medical, food, and beverage industries.
Our technical experts can help you select the right tubing dimensions, wall thickness, material specifications, and custom configurations for your application.
Platinum cured tubing offers lower extractables, higher purity, better transparency, improved mechanical properties, and reduced odor, making it ideal for critical applications.
Yes. The tubing is compatible with common sterilization methods including autoclaving, ETO, and gamma sterilization.
Yes. JMT Rubber can manufacture tubing in custom inner diameters, outer diameters, wall thicknesses, and lengths based on customer requirements.
Pharmaceutical, biotechnology, medical, food processing, dairy, beverage, and laboratory industries.
Standard packaging lengths include 10 meters, 15 meters, and 25 meters, with custom lengths available upon request.
Reliable fluid transfer solutions for critical manufacturing environments.
High-purity tubing for sensitive biological processes.
Precision tubing solutions for healthcare and medical equipment.
Safe and hygienic transfer systems for food-grade applications.
Flexible tubing solutions for dairy processing environments.
Contamination-free transfer of cosmetic ingredients and formulations.
Trusted tubing solutions for analytical and research applications.
Products manufactured in a controlled environment to ensure consistent quality and cleanliness.
Extensive experience serving pharmaceutical, biotech, medical, and food industries.
Tailored solutions developed to meet specific customer requirements.
Stringent quality control throughout the manufacturing process.
Expert guidance for product selection and application requirements.
Timely delivery and dependable customer support.
Contact our technical team to discuss your application requirements and discover the ideal silicone bellows solution for your equipment and process systems.
